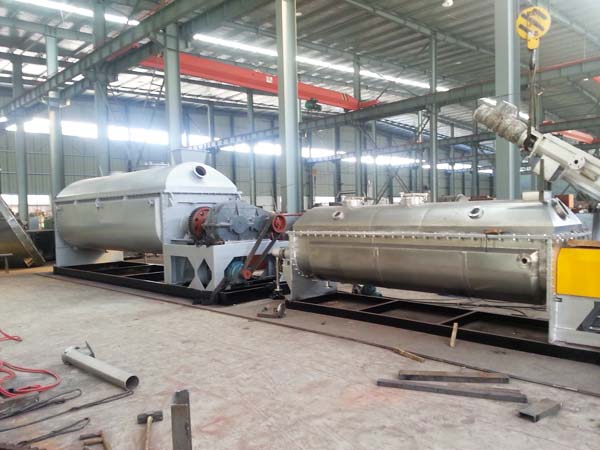

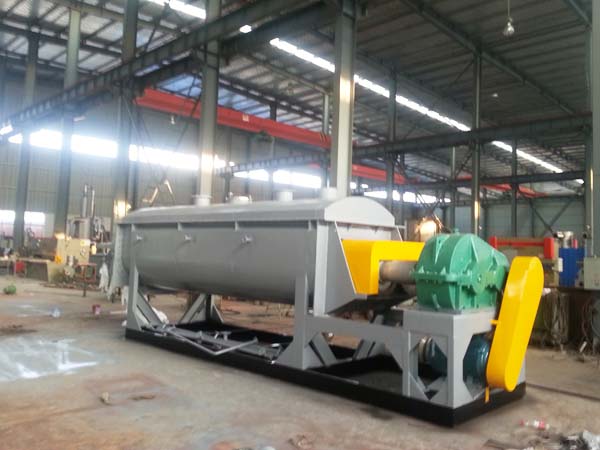

Paddle Dryer: 【Brief】：Paddle Dryer for high moisture material drying, such as paste, sludge, dye, etc; 【Series】：Dryer

Description

Equipment Characteristics

1. Paddle dryer has low energy consumption: Owing to the indirect heating and no air carrying away heat, and the insulating layer installed on the outer wall of drier, for slurry material, to evaporate 1 kg water only needs 1.2 kg steam vapor.

2. Paddle dryer has a low construction cost: As the unit effective volume owns huge heat transfer surface, this will shortens the processing time. The equipment size becomes smaller, thus less building area and space are required for the paddle dryer.

3. Paddle dryer has a wide range material processing: Utilizing different hot mediums can not only process heat-sensitive material but also material requiring to be processed at high temperature. The common mediums utilized are steam, heat conduction oil, hot water, as well as cooling water etc. The dryer can be operated continuously or intermittently. It is widely utilized in many kinds of industries.

4. Paddle dryer has less environmental pollution: Without hot air, there is no material powder dust. The evaporation capacity of material solvent is very small and so it is easy to handle with. For polluted material or solvent required to collect, a closed-system can be applied.

5. Paddle dryer has a low operation cost: When in normal operation, only require one man one hour per day. With low speed agitation and reasonable structure, the equipment wears and tears so little, and the maintenance costs are very low.

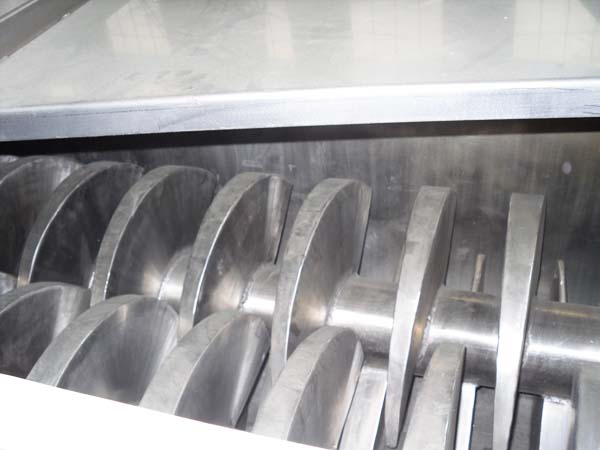

6. Paddle dryer has a stable operation: Owing to the special compression, expansion and agitation function of paddle blades, the material grains touch the heat-transfer area thoroughly. Within the axis directions, the temperature, moisture, and mixture grads of the material are very small so as to guarantee the stability of the process.

Applications Field

The paddle dryer has been successfully applied in the industries of food, chemical, petrochemical, dyestuff and industrial sludge etc. The characteristics of heat-transfer, cooling, agitation make it possible to realize the following unit operations: calcining (at low temperature), cooling, drying (solvent collecting), heating (melting), reacting and sterilizing. The agitating blades are utilized as heating surface which increases the heat transfer area of the unit effective volume. The processing time, in most cases, is therefore dramatically reduced. The heat-transfer surface of the wedge paddle blade also has the self cleaning functions. Compression, expansion and agitation functions of paddle blades can mix material uniform distribution. Material flows in axial direction as “plug flow”. The temperature, moisture, and mixture grads of the material are very small within axial range.

1.（Ca₂SO₄·2H₂O）、（Ca₂SO₄·1/2H₂O）、（NaHCO₃）（Na₂CO₃）。Hollow paddle dryer can realize low temperature calcinations by utilizing heat conduction oil. For example dihydrate calcium sulphate (Ca₂SO₄.2H₂O) can be converted to calcium sulfate hemihydrate (Ca₂SO₄.1/2H₂O).Sodium bicarbonate (NaHCO₃) can be converted to pure alkali (Na₂CO₃).

2. By adding cooling medium, such as water, refrigerated brines, the paddle dryer can be utilized for cooling. For example, utilizing paddle soda cooling machine instead of old type air soda cooling machine economize the processing device of energy and tail gas and reduce the operation costs. The paddle dryer can also be utilized to cool titanium, nickel iron alloy powder and all kinds of powder granular materials. Material in single the paddle dryer can be cooled from temperature of 1000⁰C to 40⁰C.

3、Drying, one of the most important applications, without utilizing hot air, can make it in a ideal state to collect solvent, control energy consumption and environment protection. The paddle dryer is especially applicable to solvent collecting, material of easy oxidation, flammable and hot sensitive. The paddle dryer is widely applied in industries of fine chemical, petrochemical, dyestuff, etc.

4、In axial range, the uniformity of temperature, moisture and mixture gradient makes the paddle dryer be utilized to heat, melt or react some solid material. The paddle dryer is applied in fields of compound fertilizer and denaturated starch. The paddle dryer can be utilized to sterilize food and flour. The large heating area within the unit effective volume quickly heat material to the temperature of sterilization. Long heating time which can cause material changes can be avoided.

Material Applicable

Petrochemical Industry：Polyolefin powder, panlite, high and low density polytene, linear low density polytene, polyacetal , nylon6, nylon66, nylon12, acetate fiber, polyphonyl sulfide, propenyl resin, engineering plastic, polyvincyl chloride, polyving akohol, polystyrene, polypropylene, polyester, polyformaldehyde, styreneacrylonitrile copolymer, polytene and propylene copolymer.

Environment Protection Industry：PTA sludge, electroplating sludge, boiler soot, waste residue from pharmaceutical factory, waste residues from sugar refinery, waste residues from gourmet powder factory, and coal ash.

Feedstuff Industry：soy residue, bone forage, lees, food remnant, apple residue, orange peel, bean dregs, chicken bones forage, fish mean, feed additives, biological residue

Food Industry：starch, coca niblet, salt, denaturated starch and drugs.

Chemical Industry：Soda ash, azophoska, kaolin, bentonite, white carbon, carbon, ardealite, sodium fluoride oxide, nitrate of lime, magnesium carbonate, sodium cyanide, aluminum hydroxide, barium sulfate, hydrofoil, dyestuff, molecular sieve, saponin.

Specifications
Model	1.6W	3W	4W	5W	6W		7W		8W		9W		10W		11W		12W
Model	1.6W	3W	4W	5W	Ⅰ	Ⅱ	Ⅰ	Ⅱ	Ⅰ	Ⅱ	Ⅰ	Ⅱ	Ⅰ	Ⅱ	Ⅰ	Ⅱ	12W
Heat Transfer Area m²	2.7	9	13	18	24	29	36	41	48	52	62	68	73	81	87	95	110
Effective Volume m³	0.06	0.32	0.59	1.09	1.53	1.85	2.42	2.8	3.54	3.96	4.79	5.21	5.78	6.43	7.39	8.07	9.46
REV Range r.p.m	15-30	10-25	10-25	10-20	10-20	10-20	10-20	10-20	10-20	10-20	10-20	10-20	5-15	5-15	5-15	5-15	5-10
Power kw	2.2	3.8	5.5	7.5	11	11	15	15	30	30	45	45	55	55	75	75	95
Width A mm	306	584	762	940	1118	1118	1296	1296	1474	1474	1651	1652	1828	1828	2032	2032	2210
Overall Width B mm	736	841	1066	1320	1474	1474	1676	1676	1854	1854	2134	2134	2286	2286	2438	2438	2668
Length C mm	1956	2820	3048	3328	3454	4114	4115	4724	4724	5258	5410	5842	5461	6020	5537	6124	6122
Overall Length D mm	2972	4876	5486	5918	6147	6808	6960	7570	7772	8306	8865	9296	9119	9678	9119	9704	9880
Distance between Feed Inlet and outlet E mm	1752	2540	2768	3048	3150	3810	3810	4420	4420	4954	4953	5384	5004	5562	5080	5664	5664
Center Height F mm	380	380	534	610	762	762	915	915	1066	1066	1220	1220	1220	1220	1220	1220	1220
Overall Height G mm	762	838	1092	1270	1524	1524	1778	1778	2032	2032	2362	2362	2464	2464	2566	2566	2668
Steam Inlet N inch	(2)3/4	（2)3/4	(2) 1	(2) 1	(2) 1	(2) 1	(2) 1	(2) 1	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2) 2	(2) 2	(2) 2
Water Outlet O inch	(2)3/4	(2)3/4	(2) 1	(2) 1	(2) 1	(2) 1	(2) 1	(2) 1	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2) 2	(2) 2	(2) 2
