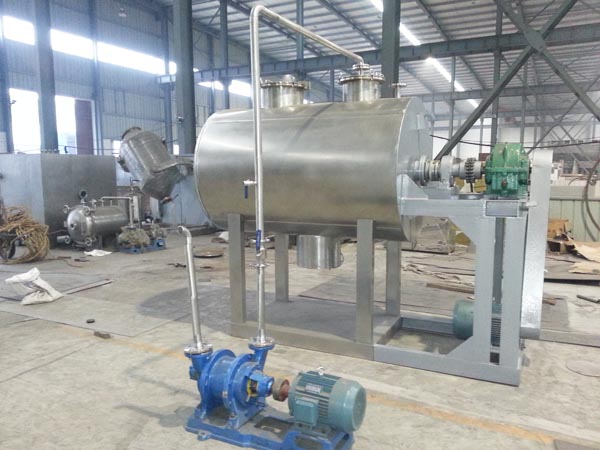

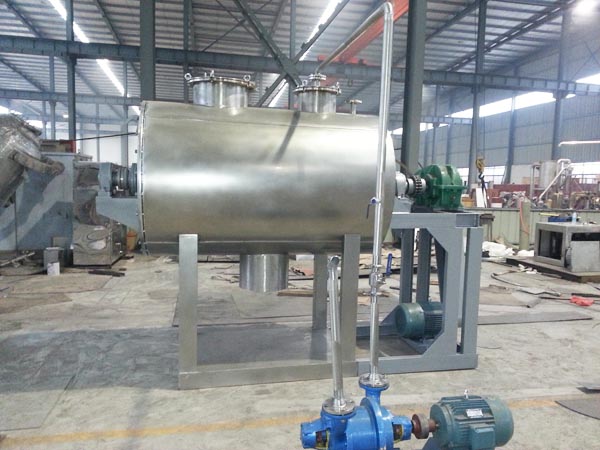

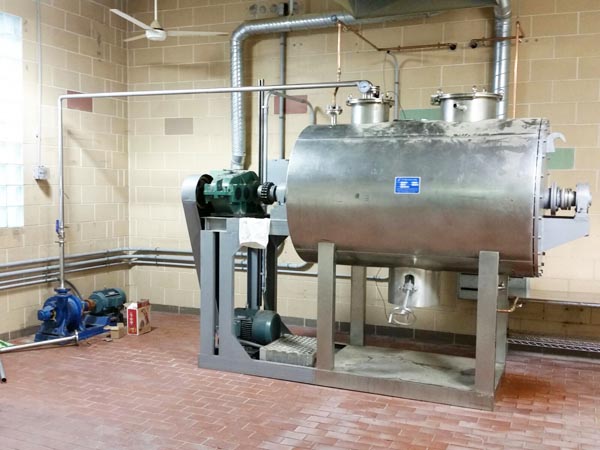

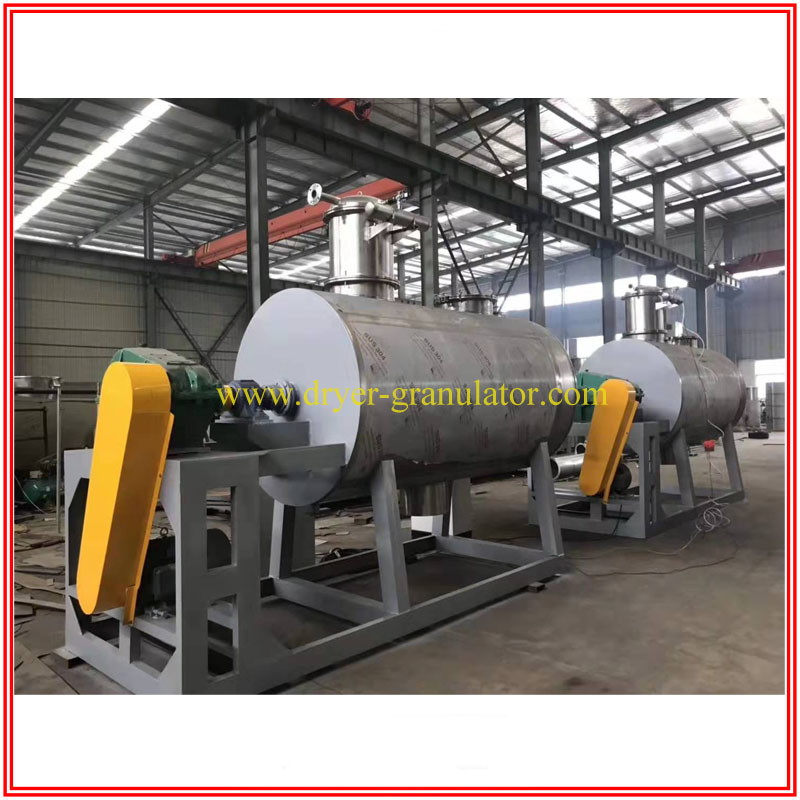

Description：It is an innovation horizontal batch-type vacuum dryer.The moister of wet material will be evaporated by heat transmission. The stirrer with squeegee will remove material on hot surface and move in the container to form cycle flow .The evaporated moisture will be pumped by vacuum pump.
Working Principle

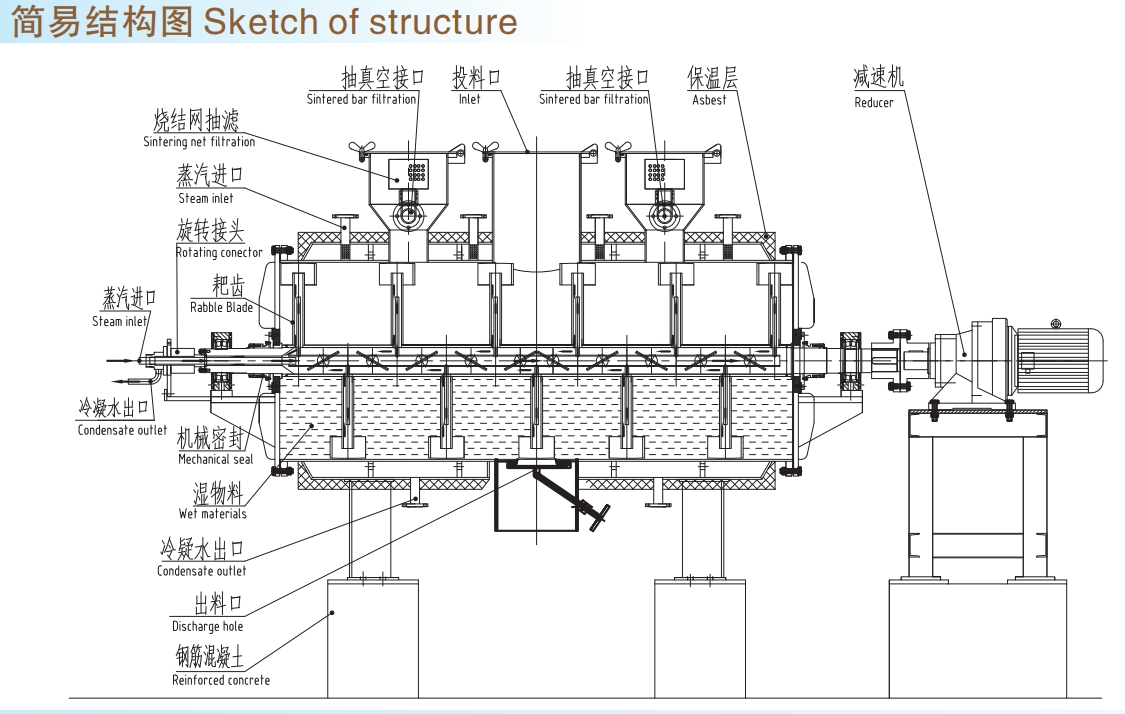

It is an innovation horizontal batch-type vacuum dryer.The moister of wet material will be evaporated by heat transmission. The stirrer with squeegee will remove material on hot surface and move in the container to form cycle flow .The evaporated moisture will be pumped by vacuum pump.
◎Being adapted the big area heating way , its heat conducting area is large and its heat ef ciency is high.
◎Being installed stirring in the machine, it makes raw material in cylinder form the state of continuous circle inside the cylinder , so the uniformity to be heated of raw material is raised greatly .
◎Being installed stirring in the machine, pulpinese, paste-like mixture or powder raw materials can be dried easy .
Material to be dried
◎The following raw materials from pharmaceutical industry , foodstuf findustry, chemical industry and so on can be dried.
Suitable for pulpiness, paste-like mixture or powder raw material.
◎Thermal sensitive raw material having the requirement to dry at lower temperature.
◎Raw materials that are easy to oxidize or explode and have strong irritative or toxic.
◎Raw materials that need to recover solvent.
Working Principle
It is an innovation horizontal batch-type vacuum dryer.The moister of wet material will be evaporated by heat transmission. The stirrer with squeegee will remove material on hot surface and move in the container to form cycle flow .The evaporated moisture will be pumped by vacuum pump.
◎Being adapted the big area heating way , its heat conducting area is large and its heat ef ciency is high.
◎Being installed stirring in the machine, it makes raw material in cylinder form the state of continuous circle inside the cylinder , so the uniformity to be heated of raw material is raised greatly .
◎Being installed stirring in the machine, pulpinese, paste-like mixture or powder raw materials can be dried easy .
Material to be dried
◎The following raw materials from pharmaceutical industry , foodstuf findustry, chemical industry and so on can be dried.
Suitable for pulpiness, paste-like mixture or powder raw material.
◎Thermal sensitive raw material having the requirement to dry at lower temperature.
◎Raw materials that are easy to oxidize or explode and have strong irritative or toxic.
◎Raw materials that need to recover solvent.
Technical Parameter
| Item | Model | ||||||
| Name | unit | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 |
| Working volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 |
| Heating area | m2 | 6 | 7.6 | 9.3 | 12.3 | 14.6 | 19.3 |
| Srirring revolution | rpm | 6-30stepless variable | |||||
| Power | kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Design pressure of Jacket(Hot water) | MPa | ≤0.3 | |||||
| Vacuum in the cylinder | MPa | -0.09～0.096 | |||||
Note:The evaporated amount of water its related te characteristics of raw materials and the temperature of air in and air out.When the temperature of air out is 90oC,the evaporated curve of moisture is listed in above Fig(for reference when choose the Model).With renew procucts unceasingly,the related parameters will be exchanged,it does not announce in advance,pardon!
