- WFJ Series Micro Grinder
- 【Brief】：superfine grinder for grinding material into about 400mesh
- 【Series】：Grinder
Descriptions

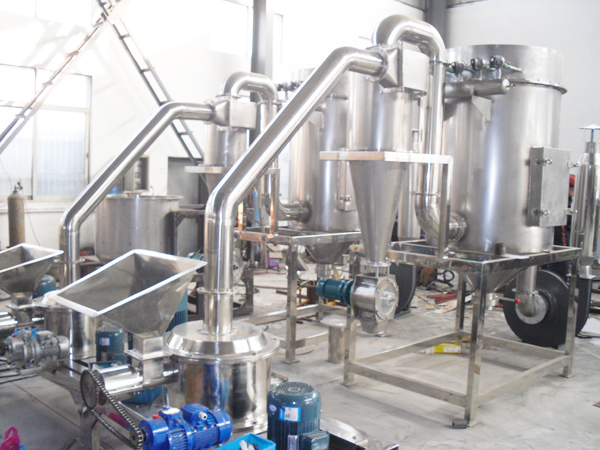

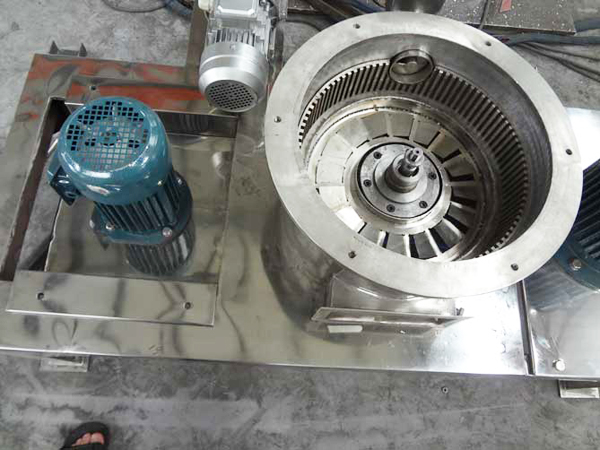

The equipment consists of main machine, assistant machine, dust bag filter and control cabinet.The process of produce is continuous.
Application: The machine is extensively used in pharmaceutical, chemical, food industries for pulverizing dry brittle materials .
Technical Parameter
| Spec | unit | WFJ-15 | WFJ-18 | WFJ-32 |
| production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| inlet material diamenter | mm | ＜10 | ＜10 | ＜15 |
| oulet material diamenter | mesh | 80-320 | 80-450 | 80-450 |
| power | kw | 13.5 | 17.5 | 46 |
| main rotaing speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| overall dimension(L×W×H) | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| weight | kg | 850 | 980 | 1500 |
