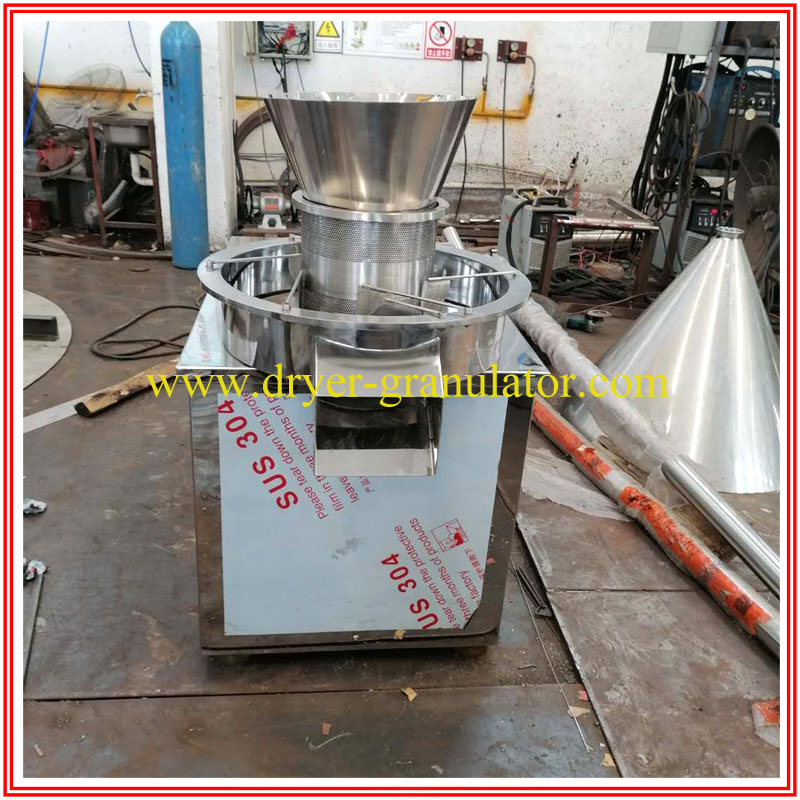

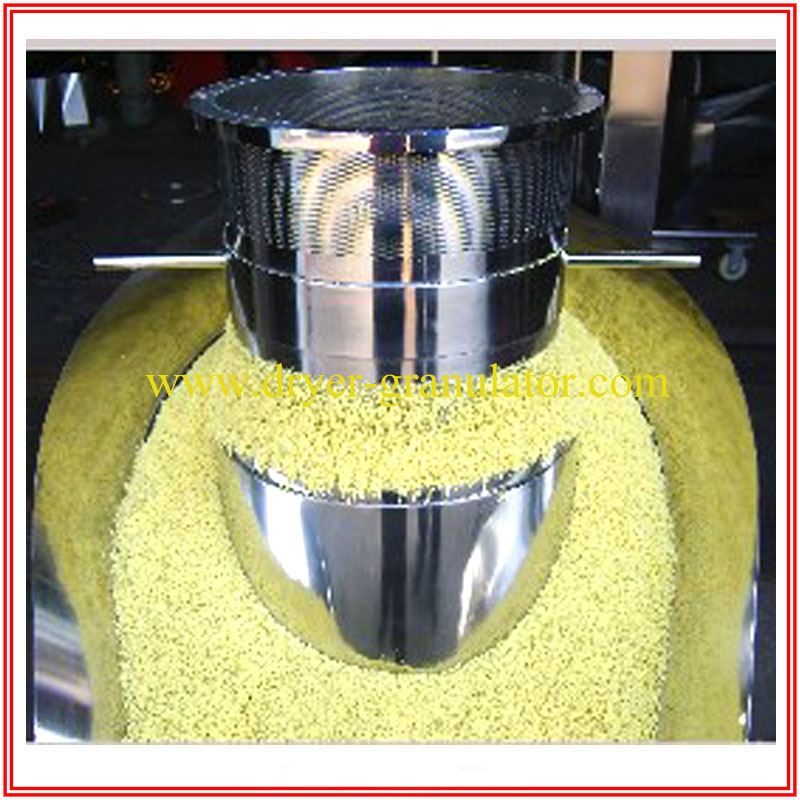

- Rotary Extruding Granulator

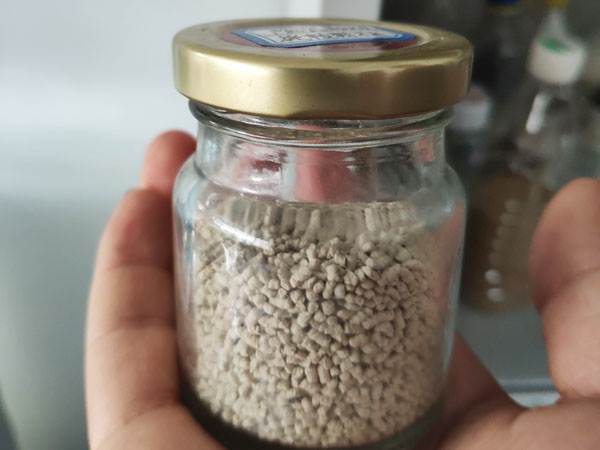

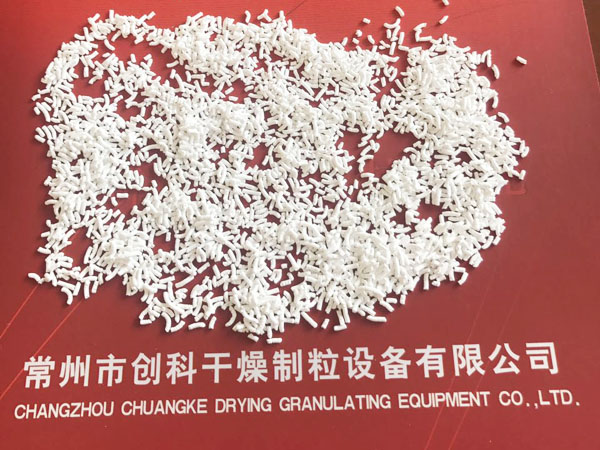

- 【Brief】：Making cylinder/noddle like granules, when dried up, the long noodles will break up into short cylinder granules
- 【Series】：Granulator
The machine is mainly suitable for pharmaceutical industry,foodstuff industry,chemical industry,soild drink industry and so on.It can make the stirred raw material granulate the needed the needed granule.Especially,it is suitable for raw materials that have sticky adhesive.
Characteristics
All parts contacted with raw material in this machine are made of stainless steel.Its apperance is beauty and taste and its structure is reasonable.Its efficiency is high and the granule is beauty.Its discharge is automatic.Therefore it can avoid damaged conditions caused manual.It is suitable for in line production too.
Technical Parameter

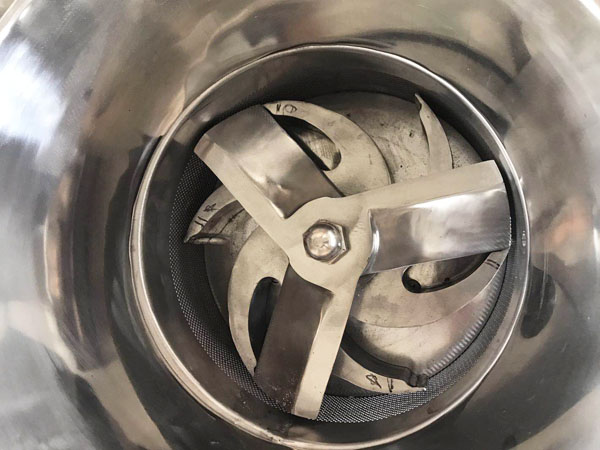

| Size of milling knife(mm) | JLZ-80 | JLZ-300 | JZL-350 |
| Diameter of granule（mm） |
Φ0.8-3.0 （it may be in accordance with the requirements of costomers） |
Φ.8-3.0 （it may be in accordance with the requirements of costomers） |
Φ.8-3.0 （it may be in accordance with the requirements of costomers） |
| Overall dimesions（mm） | 450×300×450 | 880×640×1200 | 1300×800×1400 |
|
Power of motor （kw） |
0.18 | 5.5 | 11 |
| Weight（kg） | 25 | 400 | 780 |
|
Production capcity（kg/h） |
1-10 | 100-300 | 250-600 |
Note:Becaise the rae materials exist in difference,the output in the table is for reference only.
