AT-XKT Type oblique granule feeding machine

The machine is suitable for feeding of granular, strip, block and irregular materials, and the contact part of the material is made of stainless steel, which is convenient for cleaning.

Technical Parameters

Feeding efficiency: 3-6 t/h

Lifting height: 2.5 meters

Shape is late: length × width × height (3100 × 800 × 2900)

Power. Power: AC 380V 2000W

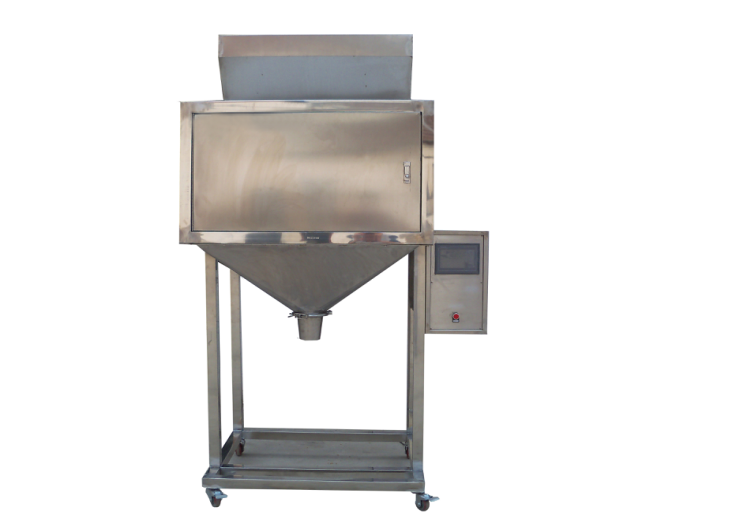

AT-2DC-6K double scale particle weighing machine

The machine is mainly suitable for quantitative packaging of granular, granular powder, strip, block, and other materials. Such as: pesticide, fertilizer, feed, Chinese medicine decoction pieces, Chinese medicine granules, premix, washing powder, snack food, candy, melon seeds, peanuts, salt, monosodium glutamate, chicken essence, seeds, grain, hardware and other granular materials Fill the package.

Features:

PLC control, easy to understand operation

High-precision electronic scale weighing, high precision

All stainless steel structure, easy to clean and corrosion resistant

Artificial bagging, photoelectric induction cutting

Each scale is double vibrator feeding or pneumatic gate feeding, fast and high precision

Functions:

Boot electronic scale automatic calibration

Weight out of tolerance alarm

Weighing error can be corrected automatically

Vibrator amplitude voltage adjustable

Technical Parameters:

Model AT-2DC-6K

Measuring range 1000-6000 g

Packing speed 0-20 packs / minute

Packing accuracy ± (0.2% - 0.5%)

Power / Power AC220V/50Hz/500W

Dimensions 150×80×230 (cm)

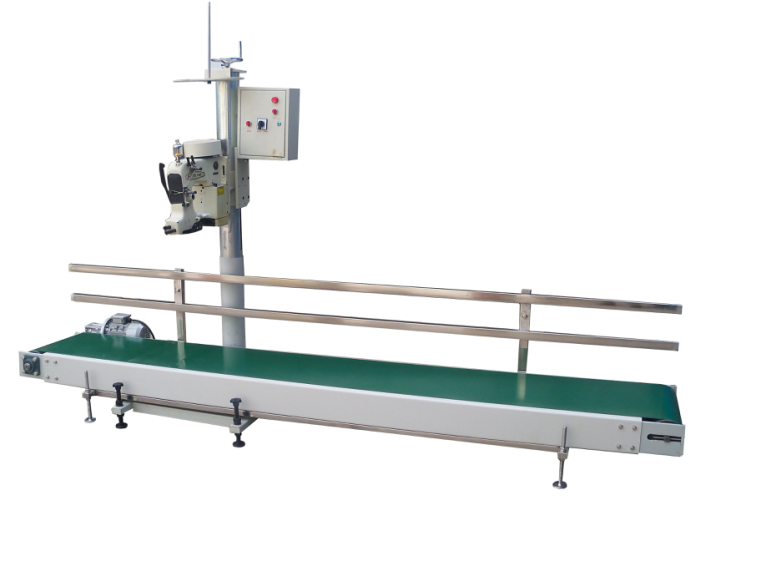

Belt conveyor sewing machine (woven bag)

Belt conveyor, with single-needle double-line sewing machine or automatic folding sewing machine, the stitches are beautiful, firm and no leakage, suitable for long-distance transportation. It is widely used in high-speed conveying and sewing of granules and powder materials in chemical, grain, feed, port and other industries.

Technical Parameters

Speed: 6-12 m / min 300-600 bags / hour

Seam bag height: 400-900 mm

Sewing weight: 10-50 kg

With motor: conveyor 370 watts sewing machine 370 watts power consumption 0.74KW

Dimensions: 2000X1500X650 (mm)

Total weight: 160kg
