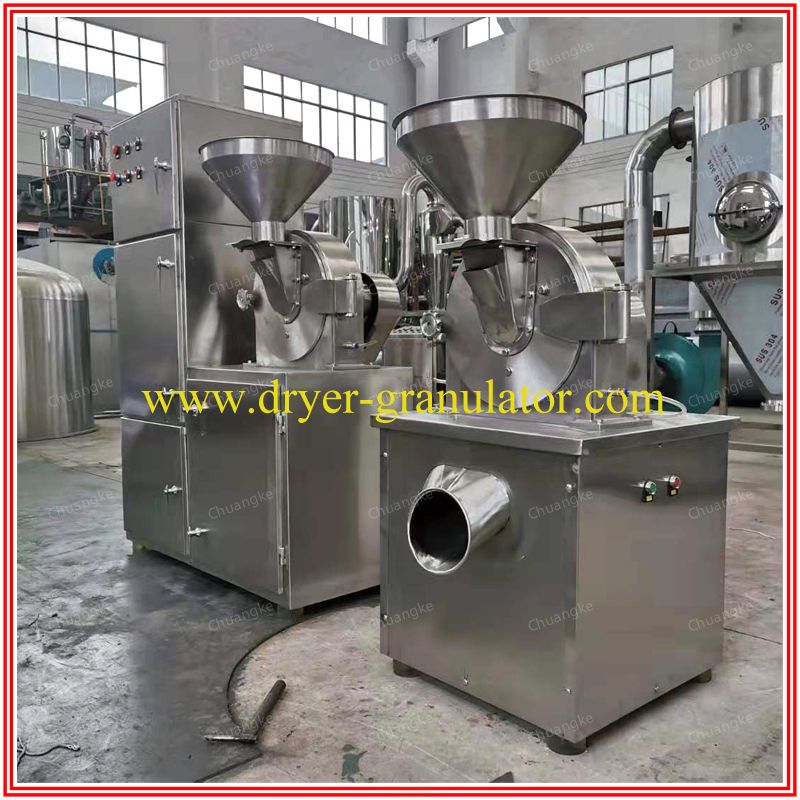

- Universal Grinder/ Pin Mill
- 【Brief】：multi purpose grinder/pulverizer for grain, rice, sugar, medicine, chemical, etc grinding
- 【Series】：Grinder
Application:
crushing and classification of chemical products, food, cosmetics, dyes, resins, shell materials and other materials.

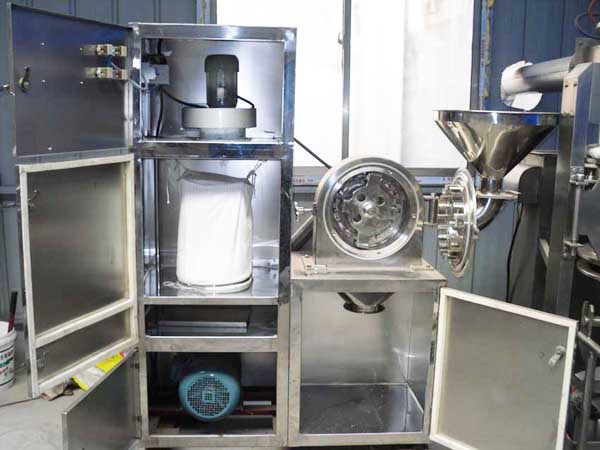

30B Series high efficiency mill by the host, auxiliary equipment, electronic control of three components, compact design, reasonable structure. For medicine, chemicals, pesticides, food and food industries, extremely versatile. Grinder built with hierarchical institution, the crushing and grading once. Thermal vacuum conveying the grinding mill machine when operating cavity produced a steady stream discharge, it is also adapted to the crushing heat-sensitive materials. 30B Series grinder to adapt a wide range of highly efficient, continuous production process, the particle size is adjustable; capable of handling such as: crushing and classification of chemical products, food, cosmetics, dyes, resins, shell materials and other materials.
crushing and classification of chemical products, food, cosmetics, dyes, resins, shell materials and other materials.
The B series universal grinder machine: suitable for pharmaceutical, chemicals, pesticides, food and food industries, extremely versatile.

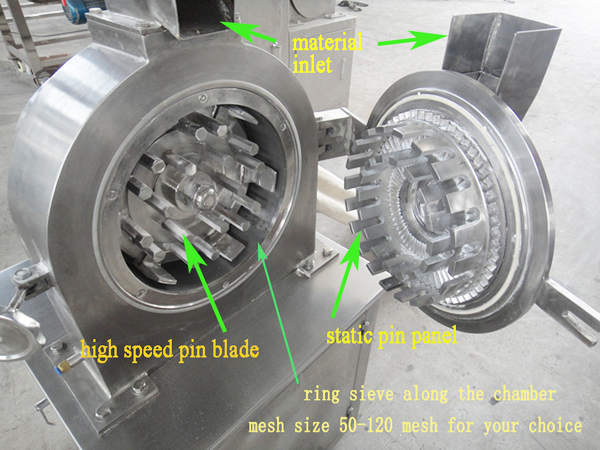

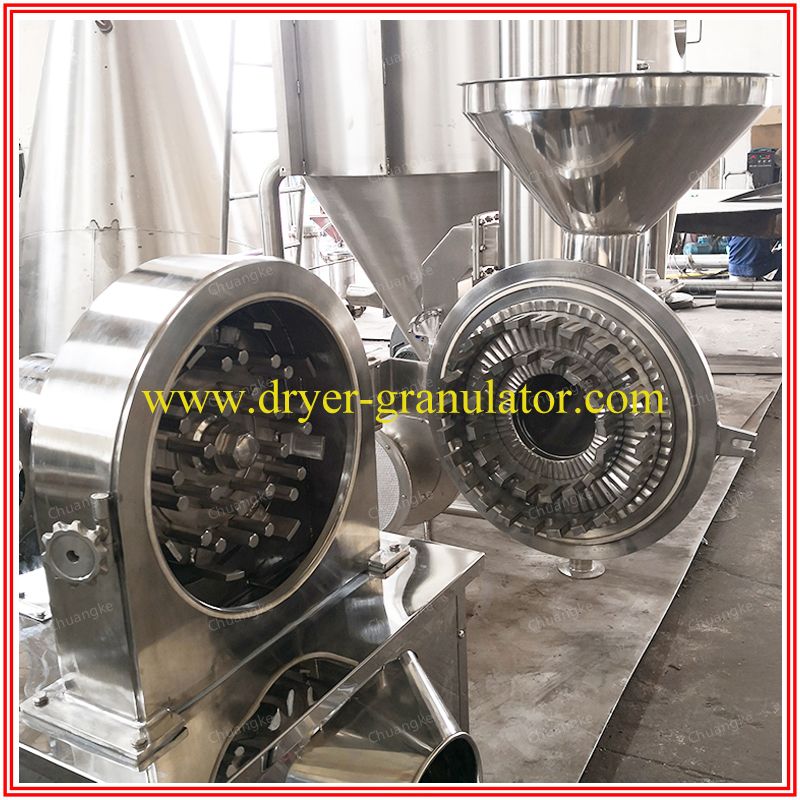

The relative motion of the machine and stationary use activities chainring teeth interrogations that was crushed by the impact of the teeth, the combined effects of friction and physical shock each other to get crushed. The machine structure is simple, robust, stable operation, good crushing effect, crushed material can be discharged directly from the grinding chamber, the particle size by changing different aperture sieve to obtain.
B series grinder parameter：
B series grinder parameter：
| Model | 20B | 30B | 40B | 60B |
| Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| Rotation speed (r/min) | 4500 | 3800 | 3400 | 2800 |
| feed size(mm) | 6 | 10 | 12 | 15 |
| outlet size (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
| Power (kw) | 4 | 5.5 | 11 | 15 |
| Weight (kg) | 250 | 320 | 550 | 680 |
| Overall size (L×W×H)(mm) | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
