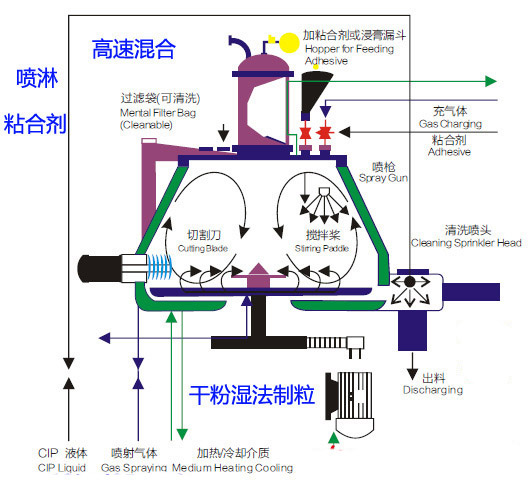

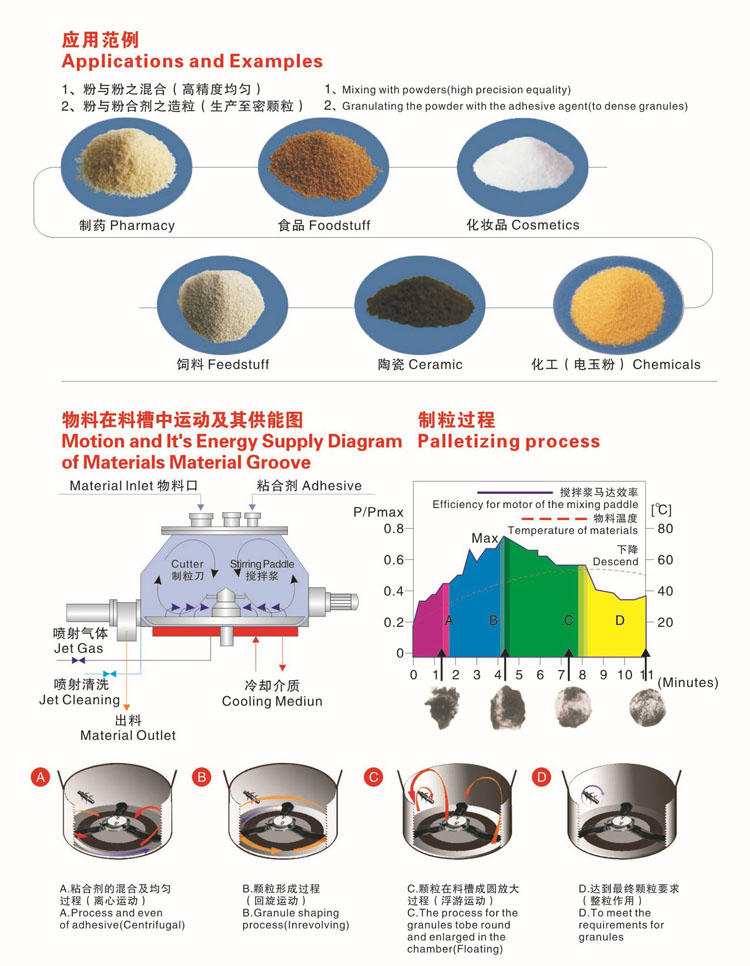

Working Principle

The powder raw material and adhesive in a cylinder are fully mixed at the bottom to become a humid soft material. Then it is cut by high-speed cutter and become uniform granules.

Characteristics
◎The machine adopts horizontal cylinder structure, its structure reasonable.
◎Air lled seal shaft for to drive. When washing , it can be changed to water.
◎Fluidized Granulation, the granule is around ball shape. Its ow ability is good.
◎Compared to traditional process, 25% of adhesive can be reduced and the drying time is short.
◎The dry mixing time is 2 minutes and the granulating time is 1-4 minutes.
◎Compared to the traditional process , 4-5 times of ef ciency is raised.
◎Dry mixing ,humid mixing and granulating are nished in the same sealed container.
◎The whole operation has strict safe and protective measures.
◎Jacket type might be adopted on request.

Technical Parameter
